PSPT Series Universal Level Compensator

Brand Name : NBSANMINSE

Model Number : PSPT-I10G1M-M16

Place of Origin : CHINA

MOQ : 100PCS

Supply Ability : 10000PCS

Delivery Time : 5-30days

Packaging Details : Plastic bag

Buffer type : I - Built-in spring

Rotary type : Nil - Vertical rotating

Suction cup connection : G1F - G1/8 female thread

Mounting thread : M16 - M16×1

Heavy load : Nil - Standard

Contact Now

Features
◇ Oilless, wear-resistant bushing is built in the guide sleeve
◇ Built-in buffer spring and external buffer spring
◇ Various buffer stroke specifications are available
◇ Light duty and heavy duty can be selected
Advantages
◇ Improve the lifetime of the products and reduce the noise
of the products
◇ Flexible contact with fragile workpieces, compensate the height
difference of workpieces
◇ Suitable for various working conditions

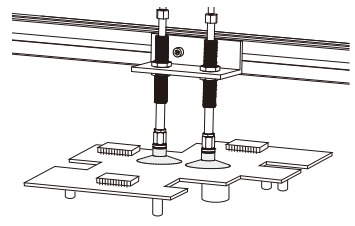

Applications
◇ Suitable for handling workpieces with height difference
◇ Handle parts sensitive to pressure with flexible contact
◇ All kinds of connection specifications, universal type, suitable for
various industries
PSPT Series Universal Level Compensator
Structure
◇ (1) Vacuum generator connection
◇ (2) Guide sleeve
◇ (3) Mounting nut
◇ (4) Spring
◇ (5) Suction cup connection
PSPT Series Universal Level Compensator
PSPT -I10 LM5 G1M -M16 -H
① ② ④ ⑤ ⑥ ⑦
①Series ②Buffer type ③Buffer stroke ④Rotary type ⑤Suction cup connection ⑥Mounting thread ⑦Heavy load
PSPT 1-Built-in spring 10 60 Nil-Verticalrotating G1F-G1/8female thread M16-M16×1 Nil-Standard
E-External spring 20 75 R-Vertical non-rotating G2F-G1/4 female thread M18-M18×1 H-Heavy load

30 90 LM5-Lateral rotating G1M-G1/8 male thread


50 110
G2M-G1/4 male thread





G3M-G3/8 male thread

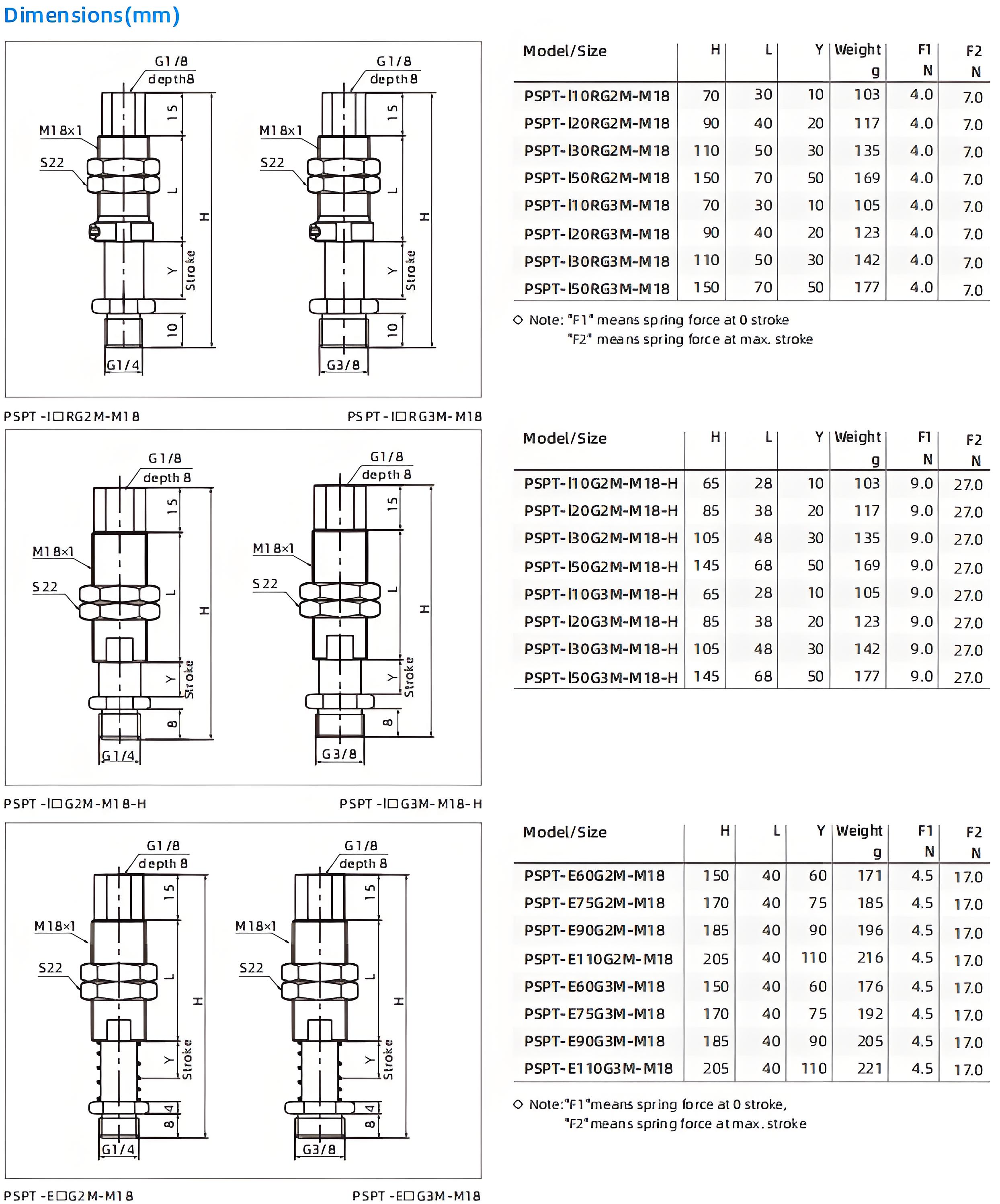

Selection
Model/Connection thread
G1M LM5G1M G1F G2F
PSPT-I110G1M-M16
 PSPT-120G1M-M16		 PSPT-I10LM5G1M-M16
 PSPT-120LM5G1M-M16		 PSPT-I110G1F-M16 P5PT-110G2F-M18 P5PT-110G2F-M18-H
PSPT-120G1F-M16 P5PT-120G2F-M18 P5PT-120G2F-M18-H
PSPT-130G1M-M16
 PSPT-150G1M-M16		 PSPT-130LM5G1M-M16
 PSPT-150LM5G1M-M16		 PSPT-130G1F-M16 PSPT-130G2F-M18 PSPT-130G2F-M18-H
PSPT-150G1F-M16 P5PT-150G2F-M18 PSPT-150G2F-M18-H




Model/Connection thread
G2M
RG2M RG3M
P5PT-I10G2M-M18 P5PT-E60G2M-M18 PSPT-I10G2M-M18-H PSPT-I10RG2M-M18 PSPT-I10RG3M-M18
P5PT-120G2M-M18 P5PT-E75G2M-M18 PSPT-I20G2M-M18-H PSPT-120RG2M-M18 PSPT-120RG3M-M18
P5PT-130G2M-M18 P5PT-E90G2M-M18 PSPT-I30G2M-M18-H PSPT-130RG2M-M18 PSPT-130RG3M-M18
PSPT-150G2M-M18 PSPT-E110G2M-M18 PSPT-I50G2M-M18-H PSPT-150RG2M-M18 PSPT-150RG3M-M18
Model/Connection thread



G3M

P5PT-I10G3M-M18 PSPT-E60G3M-M18 P5PT-110G3M-M18-H
P5PT-120G3M-M18 PSPT-E75G3M-M18 P5PT-120G3M-M18-H
P5PT-130G3M-M18 PSPT-E90G3M-M18 PSPT-130G3M-M18-H
P5PT-150G3M-M18 PSPT-E110G3M-M18 PSPT-150G3M-M18-H
◇ Note: It is suggested that the actual working compressed stroke of level compensator should not exceed 50% of its max. compressed stroke
