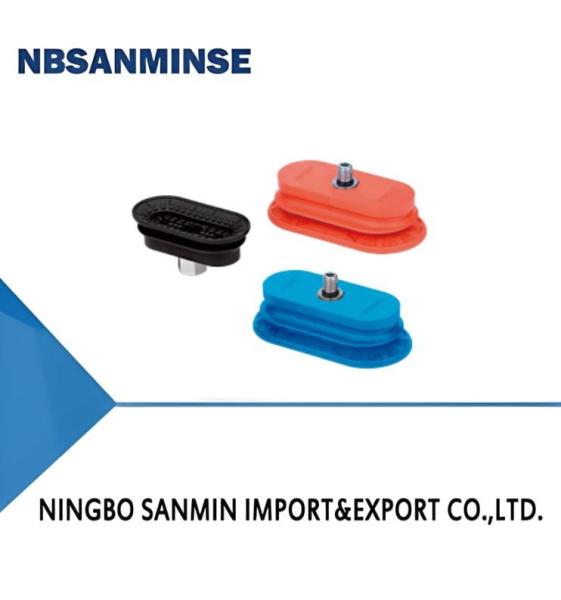

SOB Series Oval Suction Cup Special for Metal Sheet

Brand Name : NBSANMINSE

Model Number : SOB30×60

Place of Origin : CHINA

MOQ : 100PCS

Supply Ability : 10000PCS

Delivery Time : 5-30days

Packaging Details : Plastic bag

Vertical pull-out force N : 53

Lateral pull-out force N : 60

Lateral pull-out force (Oily surface)N : 50

Inner volume cm³ : 8.7

Min.curve radius of workpiece mm : 25

Contact Now

Features
◇ 1.5 Bellows oval structure
◇ Internal large area pattern support structure
◇ Various sizes and specifications are available
Advantages
◇ Handling long and narrow workpieces with even surface or curvature
◇ The max. temp of HK material is 250℃, it can be used to pick up
high temp metal sheet
◇ The max. temp of HD material is 160℃, it can be used to pick up
high temp glass without mark
◇ Suitable for workpieces with different sizes and shapes
Applications
◇ Handling narrow and long metal parts in fast speed, short cycle time
◇ Handling metal sheet and aluminum plates without deformation
◇ Handling automotive stamping metal parts
SOB Series Oval Suction Cup Special for Metal Sheet
Structure
◇ 1.5 Bellows structure
◇ Suction cup and fitting are one-piece structure
SOB Series Oval Suction Cup Special for Metal Sheet
SOB 30×60 N-G3F
① ② ③
① Series ②Size ③ Material & Hardness
④ Connection thread
SOB 30×60 N - NBR 60 G2F-G1/4female thread

40×80 HK-Extra high temp rubber 65 G3F-G3/8female thread

55×110 HD-High temp/mark free material 60 G2M - G1/4 male thread
70×140

M10M-M10×1.5male thread



M14M-M14×1.5 male thread
RA-Rectangular adapter
Selection
Model Connection thread
G2M		 M1M M14M G2F G3F RA
SOB30×60N-□
 SOB40×80N-□		 SOB30×60N-G2M
SO40×80N-G2M		 SOB30×60N-M10M
SOB40×80N-M10M		 SOB30×60N-M14M
SO40×80N-M14M		 SO30×60N-G2F
SO40×80N-G2F		 SQB30×60N-G3F
SOB40×80N-G3F		 SO30×60N-RA
SOB40×80N-RA
SOB55×110N-□
 SOB70×140N-		 SOB55×110N-G2M
SOB70×140N-G2M		 SO855×110N-M10M
SO70×140N-M10M		 SOB55×110N-M14M
SOB70×140N-M14M		 SO85×110N-G2F
SO870×140N-G2F		 SO855×110N-G3F SOBS5×110N-RA
SO870×140N-G3F SO870×140N-RA







Model Connection thread
G2M		 G2F G3F
SOB30×60HK-
 SO40×80HK-□		 SOB30×60HK-G2M
SOB40×80HK-G2M		 SOB30×60HK-G2F S0B30×60HK-G3F
SOB40×80HK-G2F SO840×80HK-G3F
SOB55×110HK-□
SOB70×140HK-□		 SO85×110HK-G2M
SOB70×140HK-G2M		 SO85×110HK-G2F
SOB70×140HK-G2F		 Q855×110HK-G3F
Q870×140HK-G3F




Model Connection thread
G2M		 G2F G3F
SOB30×60HD-
 SOB40×80HD-□		 SOB30×60HD-G2M
SOB40×80HD-G2M		 SOB30×60HD-G2F
SOB40×80HD-G2F		 Q830×60HD-G3F
SOB40×80HD-G3F
SOB55×110HD-□
 SOB70×140HD-□		 SOB55×110HD-G2M SO85×110HD-G2F SQ855×110HD-G3F
SOB70×140HD-G2M SOB70×140HD-G2F Q870×140HD-G3F
Technical parameters
Model Vertical
pull-outforce
N		 Lateral
pull-outforce
N		 Lateral
pull-out force
(Oily surface)N		 Inner
volume
cm³		 Min.curve radius
of workpiece
мм		 Weight
g		 Recommended
hose dia.
мм		 MPQ
pcs
SOB30×60
SOB40×80
SO55×110
SOB70×140		 53
110
197
275		 60
118		 50
101		 8.720 2532 2633 6 1
8 1
200 183 50 50 75 8 1
295 267 100 70 117 8 1
◇ Note: Testing vacuum level -60kPa, workpiece with smooth and clean surface. The data of pull-out force as above are figured out without considering safety factor.
The data may be different according to different workpiece surfaces
SOB Series Oval Suction Cup Special for Metal Sheet
M - Male thread connection
◇ Note: The dimensional tolerance conforms to GBT3672.1-2002-1 M3 rubber product dimensional tolerance standard
